Hobbywing 30112619 XR10 1/10 160A PRO G3 Brushless ESC - Modified Racing
Hobbywing 30112619 XR10 1/10 160A PRO G3 Brushless ESC - Modified Racing
Regular price
$419.00
Regular price
Sale price
$419.00
Unit price
/
per

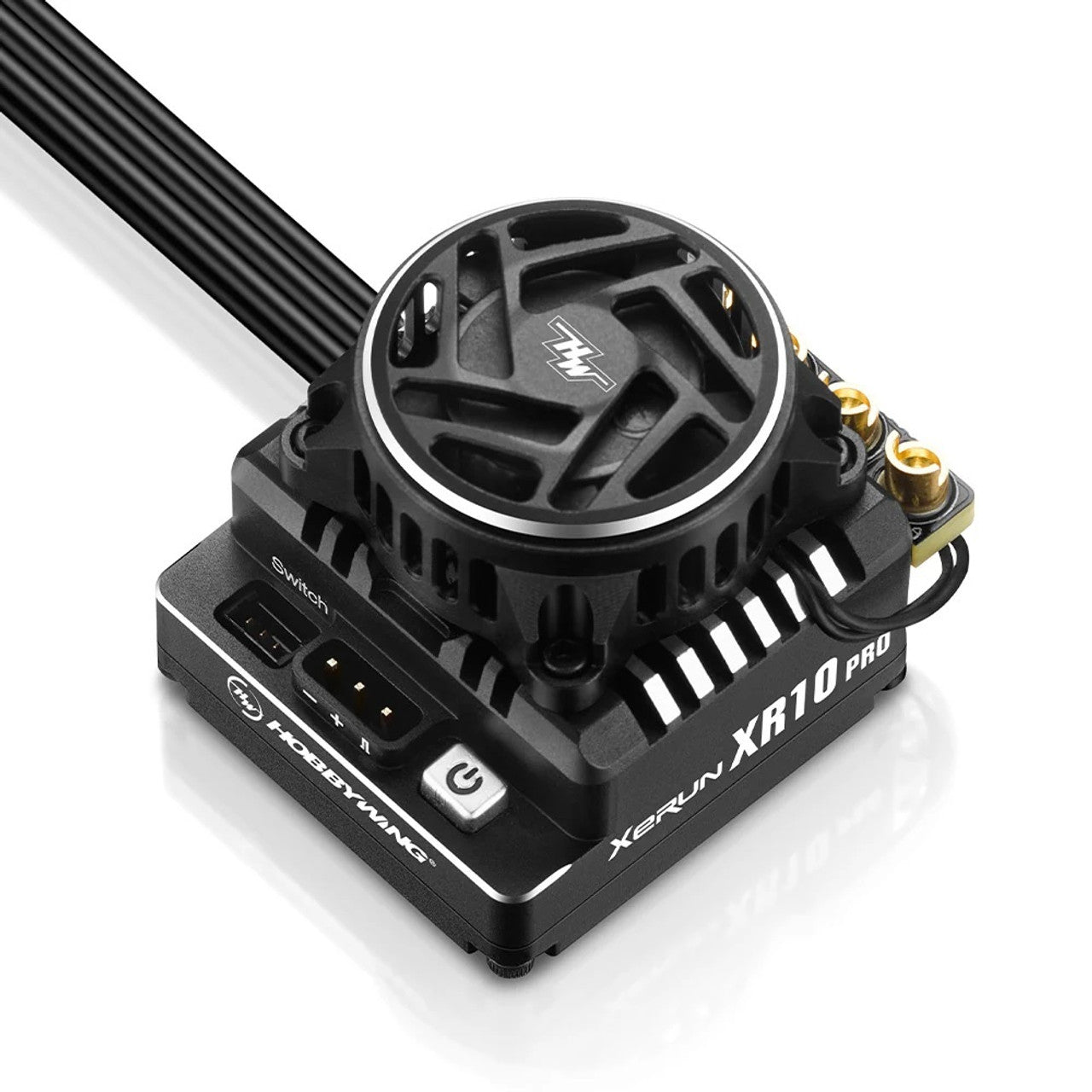

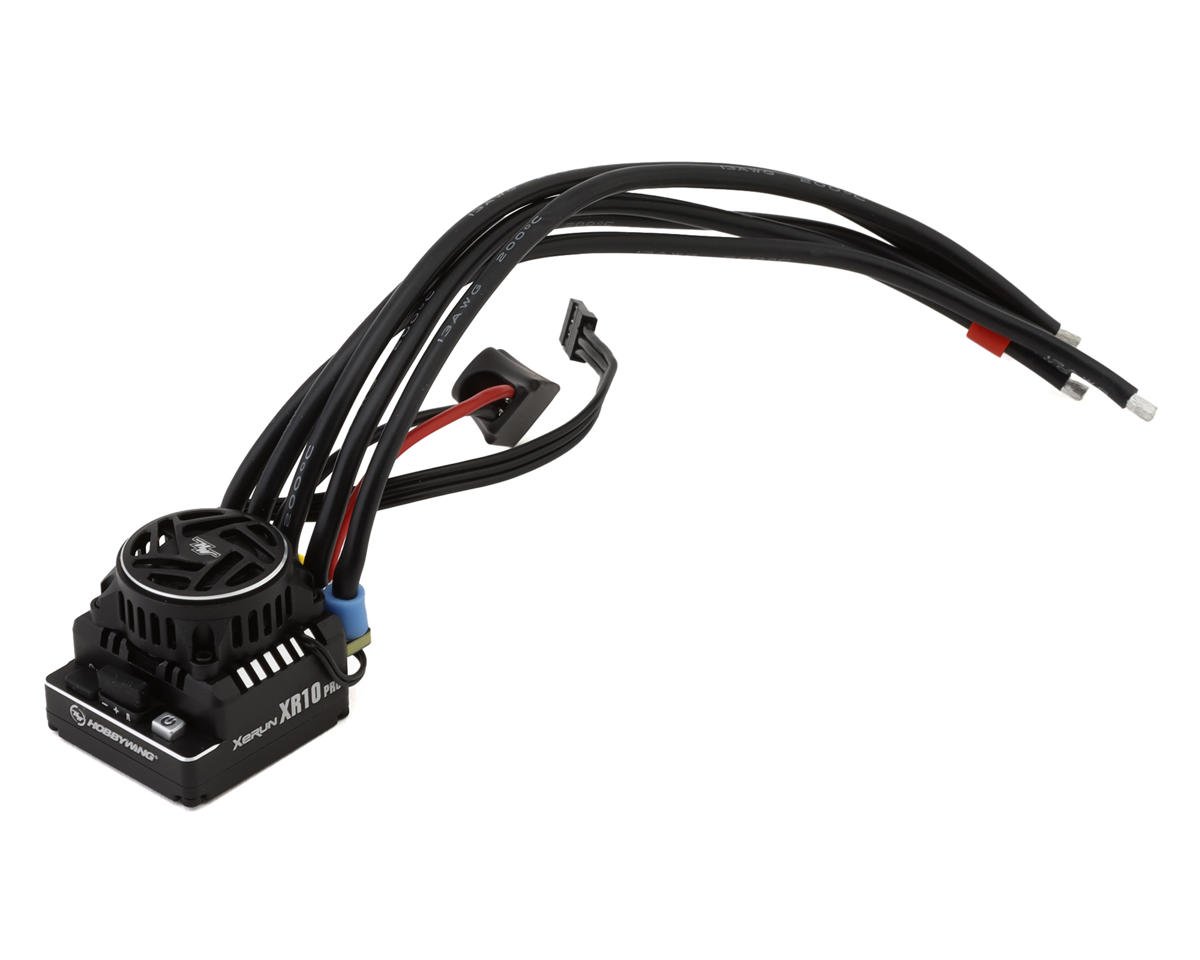

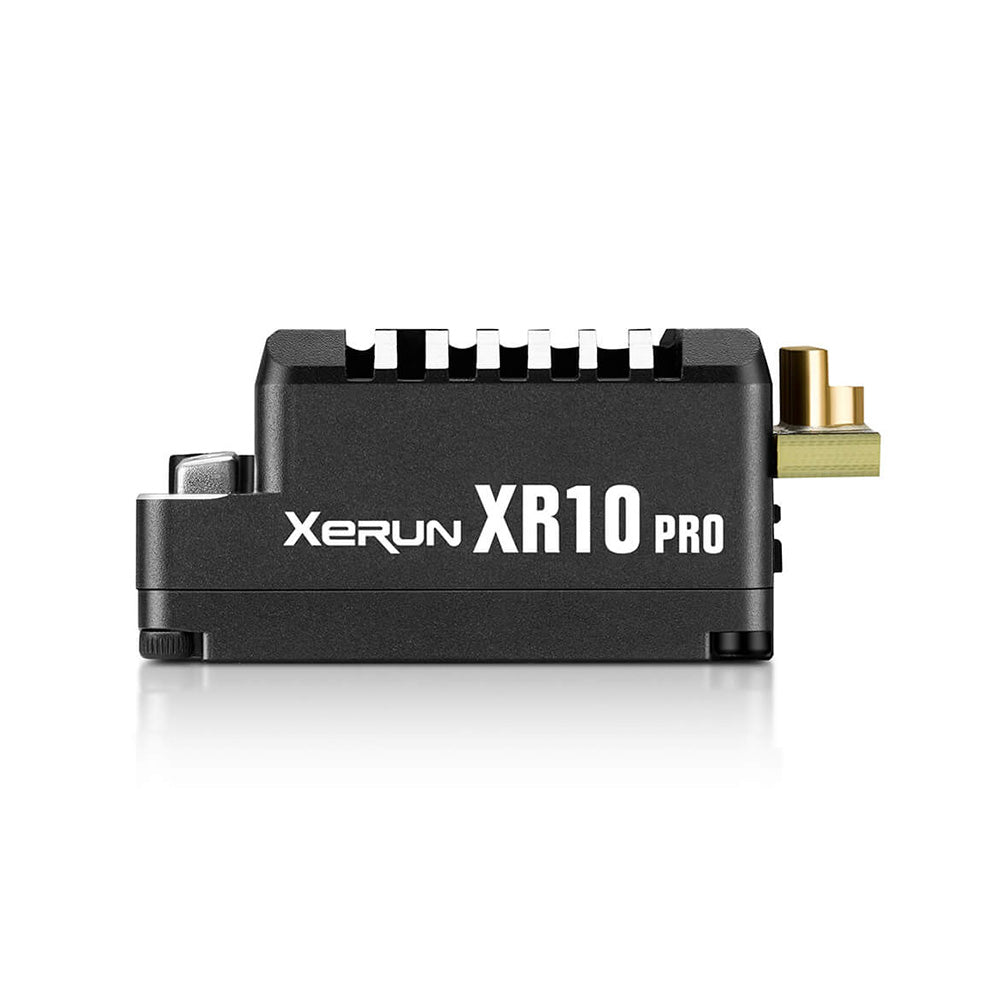

HOBBYWING 30112619 XeRun XR10 Pro G3X ESC for Modified Class Racing
The Hobbywing Xerun XR10 Pro G3 1/10 160A Sensored Brushless ESC is tailored for competitive 1/10 modified class racing. This ESC provides optimal performance, offering racers precise control, improved power delivery, and advanced customization options to adapt to various track conditions. With features like Reverse Polarity Protection*, customizable profiles, and built-in data logging, this ESC gives racers a competitive edge while ensuring long-term reliability and efficiency.
FEATURES:
- 160A continuous current
- Patented Reverse Polarity Protection
- Three customizable racing profiles
- Variable frequency PWM and brake control
- Built-in data logging
- Internal and external switch options
- Softening power delivery function
- Disc Brake mode for enhanced braking
- ESC and motor thermal protection
- Designed for long-term durability and reliability
SPECIFICATIONS:
- Motor Type: Brushless - Sensored/Sensorless
- Input Voltage: 2S LiPo (Only)
- Continuous Current: 160A
- Peak Current: 1200A
- Dimensions (LxWxH): 1.38x1.32x1.19in (35x33.6x30.3mm)
- Weight: 3.28oz (93g)
- Motor Limits:
- Touring Car: >4.5T
- Buggy: >5.5T
- BEC Voltage: 5-7.4V
- BEC Continuous Current: 5A
- Motor Connector: Solder
- Battery Connector: Solder
- Programmable: Yes, with OTA or LCD Program Box Pro**
INCLUDES:
- (1) Xerun XR10 Pro G3 1/10 160A Sensored Brushless ESC

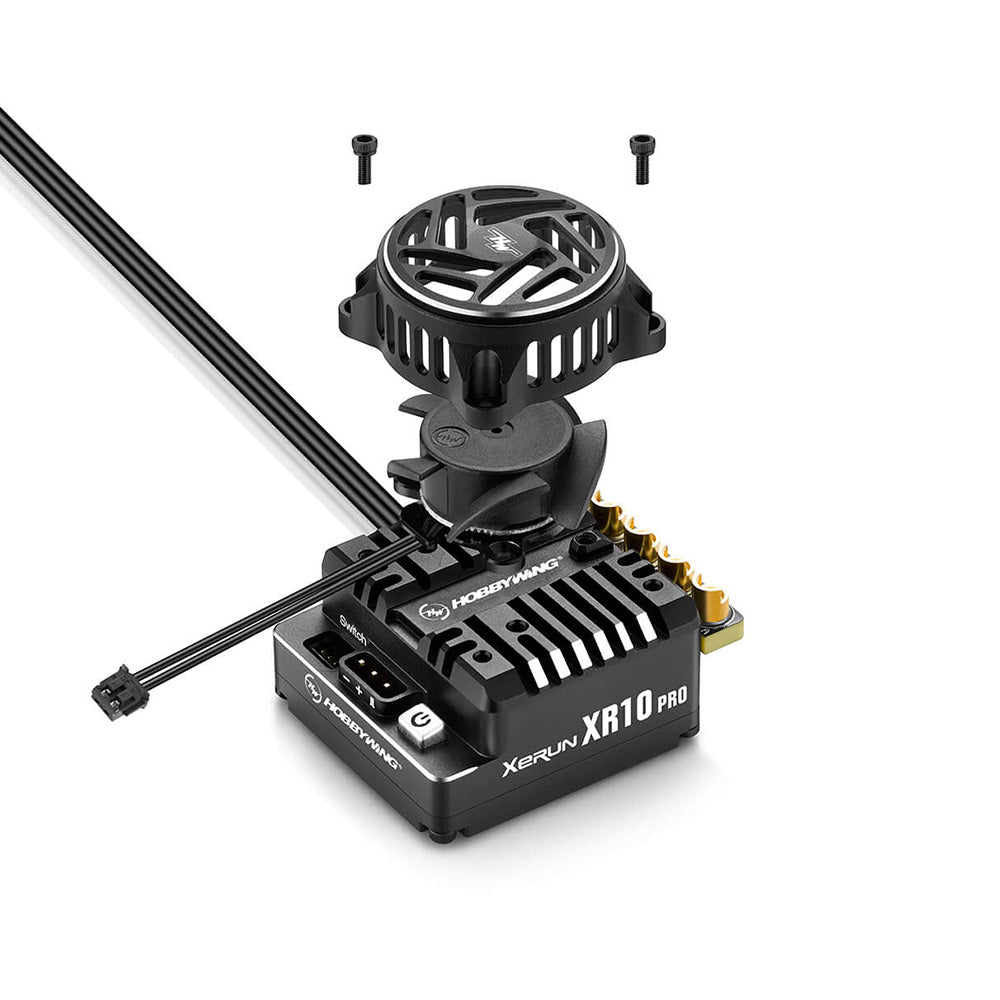

- (1) Cooling Fan
- Factory Decals & Accessories
- Product Manual
Notes:
- *While the ESC provides Reverse Polarity Protection, the standard capacitor in the ESC does not offer reverse connection protection. Reverse connection of the battery will damage the capacitor.
- **The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
