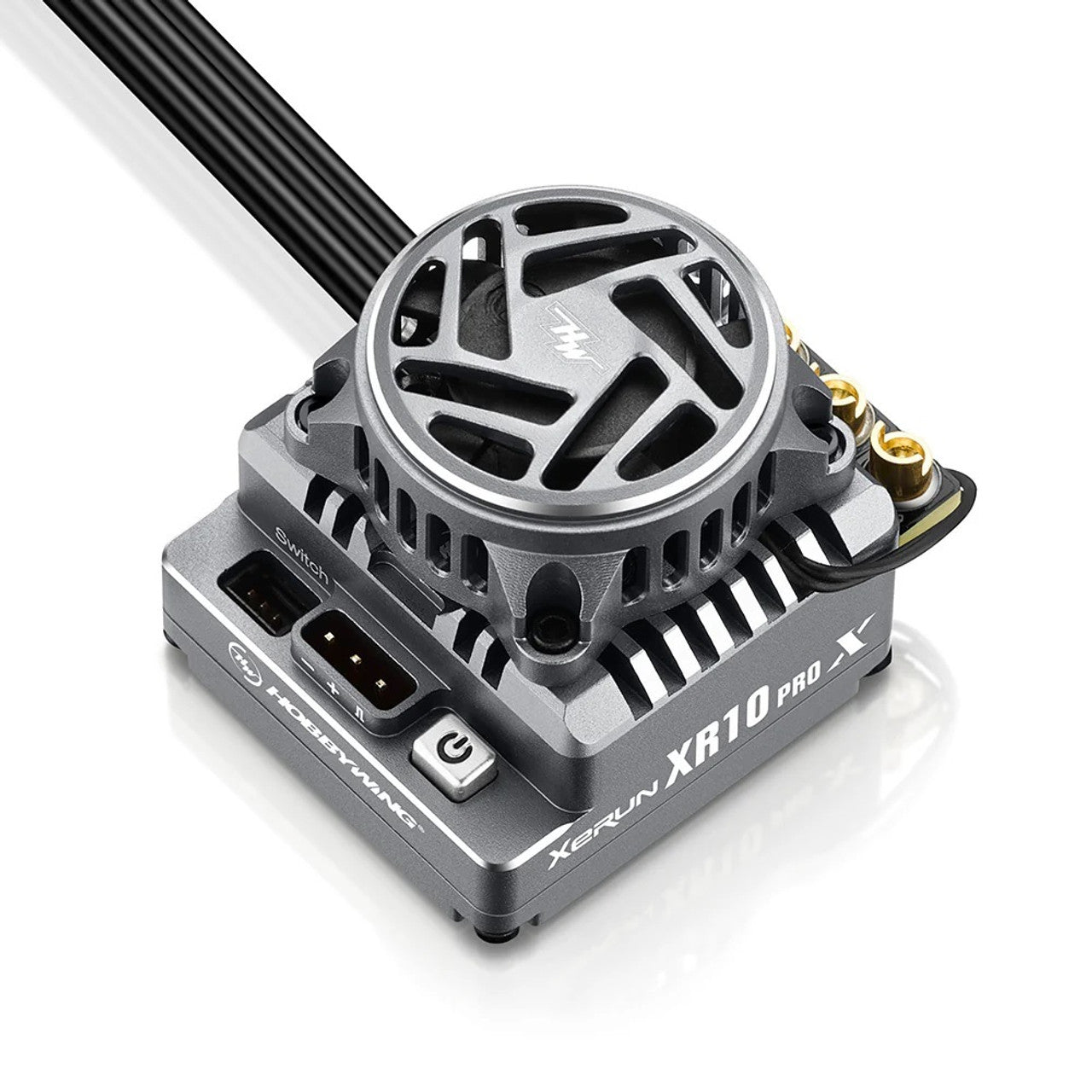

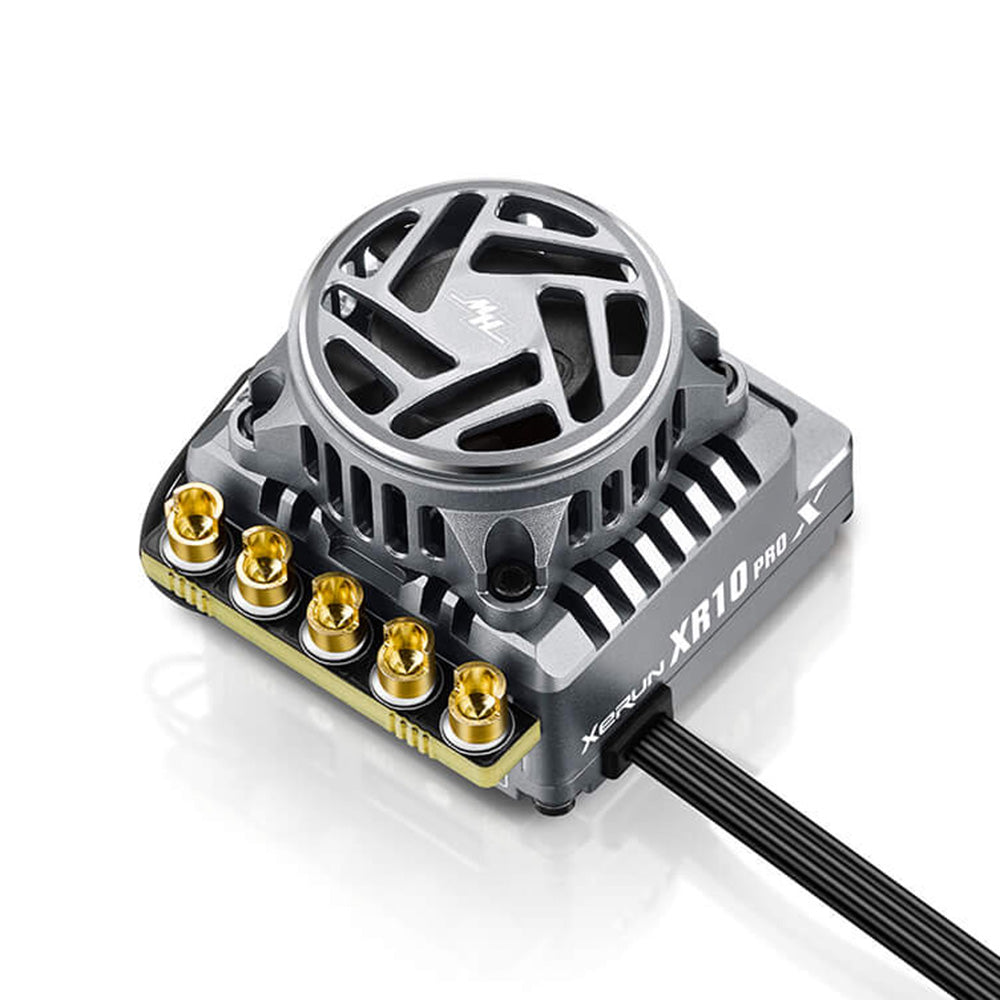

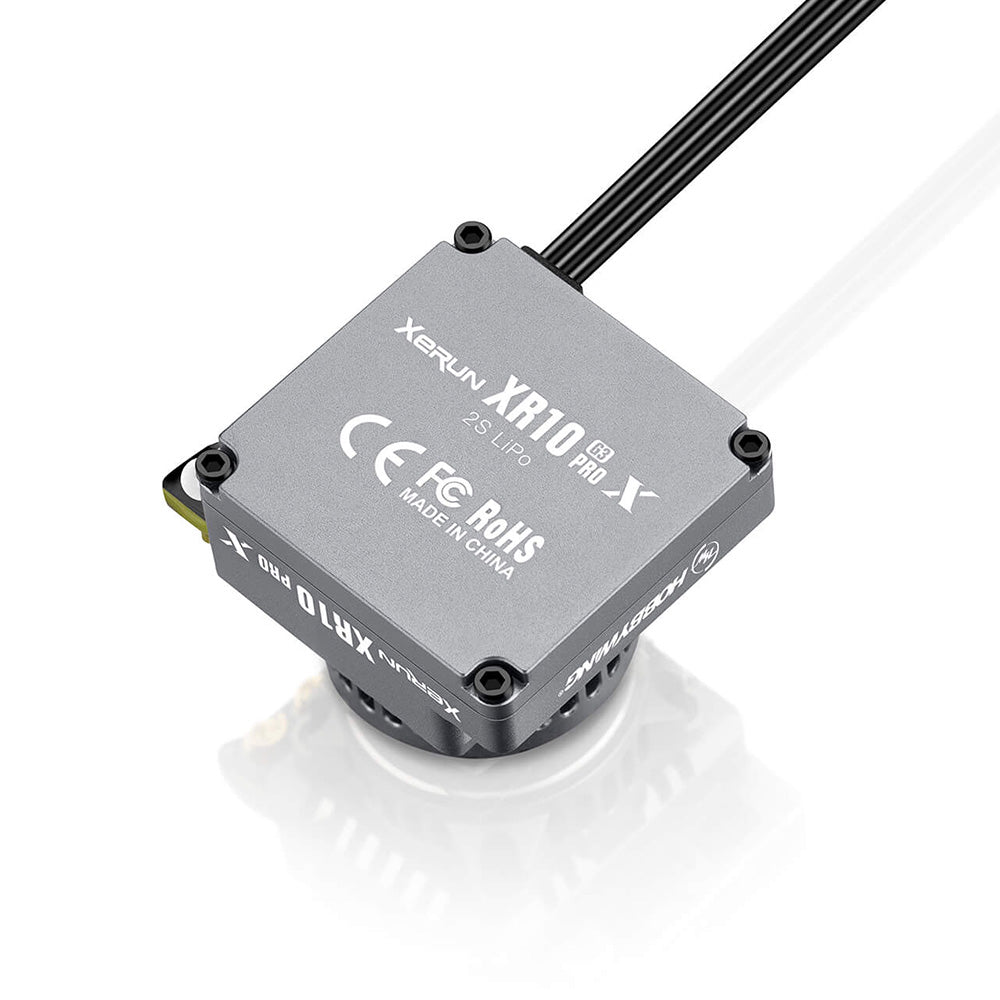

HOBBYWING 30112620 XeRun XR10 Pro G3X ESC for Stock Class Racing

The Hobbywing Xerun XR10 Pro G3X Stock Spec 1/10 160A Sensored Brushless ESC is engineered specifically for 1/10th Stock class racing, providing racers with precise control and optimized performance. Designed with a unique Hobbywing trade secret, the ESC handles aggressive current while minimizing heat generation, ensuring maximum efficiency and power delivery. With advanced customization features, built-in protections, and data recording**, it offers racers the reliability and competitive edge needed to perform at their best.

FEATURES:

• 160A continuous current
• Hobbywing's trade secret technology for reduced heat generation
• Three customizable racing profiles
• Variable frequency PWM and brake control
• Built-in data recording module
• Internal and external switch options
• Softening function for smoother power delivery
• Disc Brake mode for enhanced braking
• Low-voltage cutoff protection
• ESC and motor thermal protection

SPECIFICATIONS:

• Motor Type: Brushless - Sensored/Sensorless
• Input Voltage: 2S LiPo (Only)
• Continuous Current: 160A
• Peak Current: 1200A
• Dimensions (LxWxH): 1.38x1.32x1.19in (35x33.6x30.3mm)
• Weight: 3.58oz (101.5g)
• Motor Limits: 540-Size 3650 Motor
• BEC Voltage: 5-7.4V
• BEC Continuous Current: 5A

• Motor Connector: Solder
• Battery Connector: Solder
• Programmable: Yes, with OTA or LCD Program Box Pro*

INCLUDES:

• (1) Xerun XR10 Pro G3X Stock Spec 1/10 160A Sensored Brushless ESC
• (1) Cooling Fan
• Factory Decals & Accessories
• Product Manual

Notes:

• *The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.
• **The G3X ESC is not equipped with Reverse Polarity Protection. Reverse connection of the battery will damage the capacitor and the ESC. Please refer to the owner's manual to ensure proper connections.
