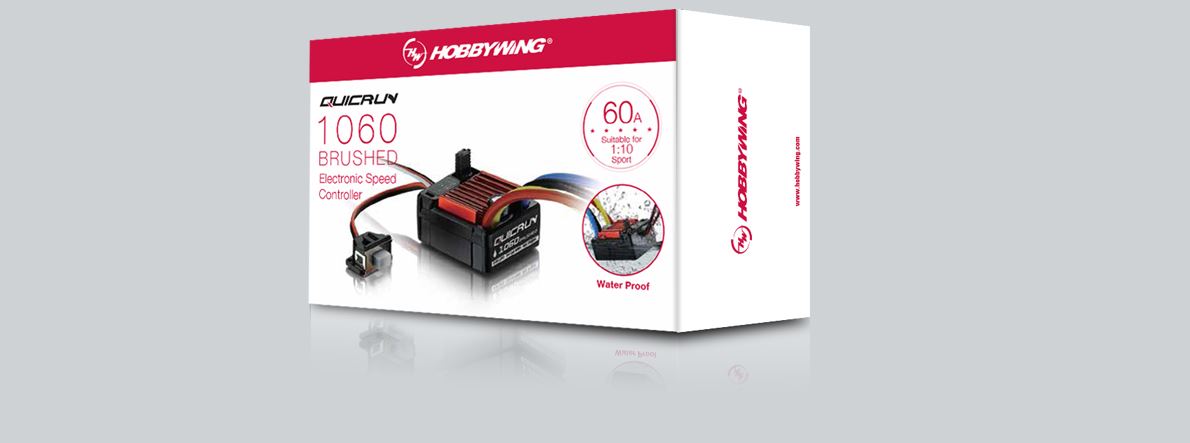

Hobbywing 30120201 QuicRun WP 1060 60amp Brushed ESC

Hobbywing 30120201 QuicRun WP 1060 60amp Brushed ESC

SKU: HW30120201
$43.90
$43.90
Sale Sold out
Tax included. Shipping calculated at checkout.

Specifications:

Product Name: QuicRun WP 1060 Brushed

Product Number: 30120201


Type:

Scale 1/10th

Brushed

Waterproof



Specifications

Cont./Peak Current: 60A/360A

Input: 2-3S LiPo/6-9 Cells NiMH

BEC Output: Switch Mode:6V/3A


Wires & Connectors

Input Wires: Red-16AWG-100mm*1/Black-16AWG-100mm*1

Output Wires: Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1

Input Connectors: Big-sized TAMIYA Connector

Output Connecotors: 4.0 Bullet Connectors (Female)


ESC Programing

SET Button on ESC: Not Supported

LED Program Box: Not Supported

LCD Program Box: Not Supported

WiFi Module: Not Supported

WiFi Module: Not Supported

Program Port: Jumper Cap

Firmware Upgrade: Not Supported



Size & Weight:

Size: 36.5x32.0x18.0mm

Weight: 39g



Applications:

Motors: Brushed Motors

Vehicles: 1/10th Touring Cars/Buggies/Trucks/Rock Crawlers

KV Rating/T Count:  2S LiPo: T≥12T, 3S LiPo: T≥18T, (540/550 Size Motors)



Installation & Connection

Turn off the ESC switch, wire the battery, motor, ESC, servo, receiver according to the following diagram. Recheck the wiring to ensure all connections are correct before getting into the next step.
1) Once the power is wrongly connected (that means the battery polarity is mistakenly reversed ), irreparable damage may occur to the ESC and batteries. Therefore, please pay close attention to the battery polarity.
2) Please swap the two wire connections if the motor rotate in the opposite direction.
