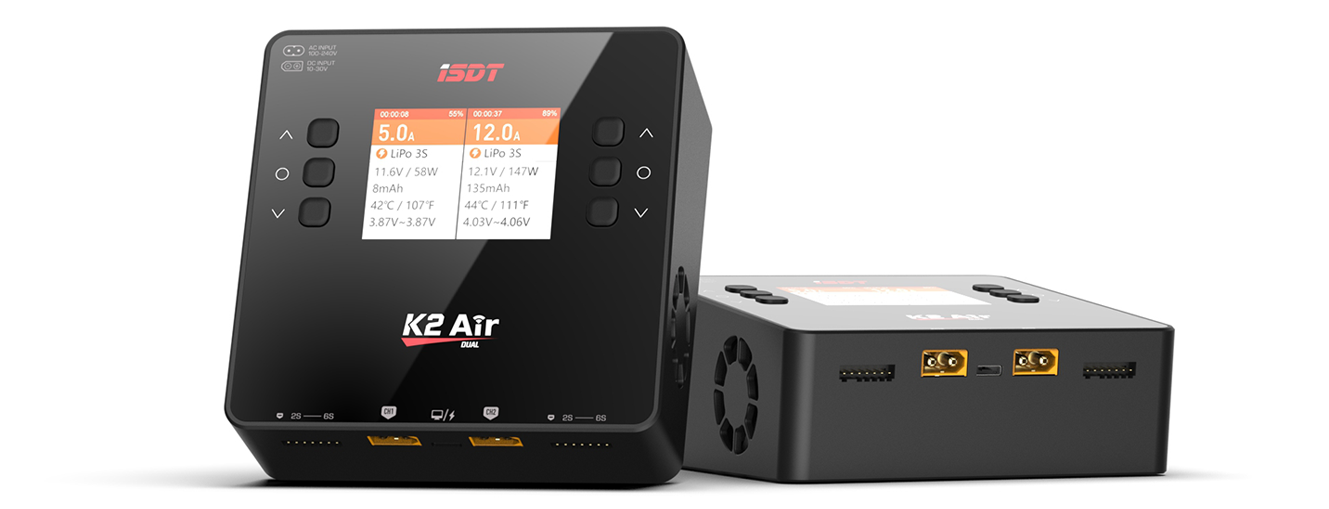

ISDT K2 Air Dual Charger
ISDT K2 Air Dual Charger

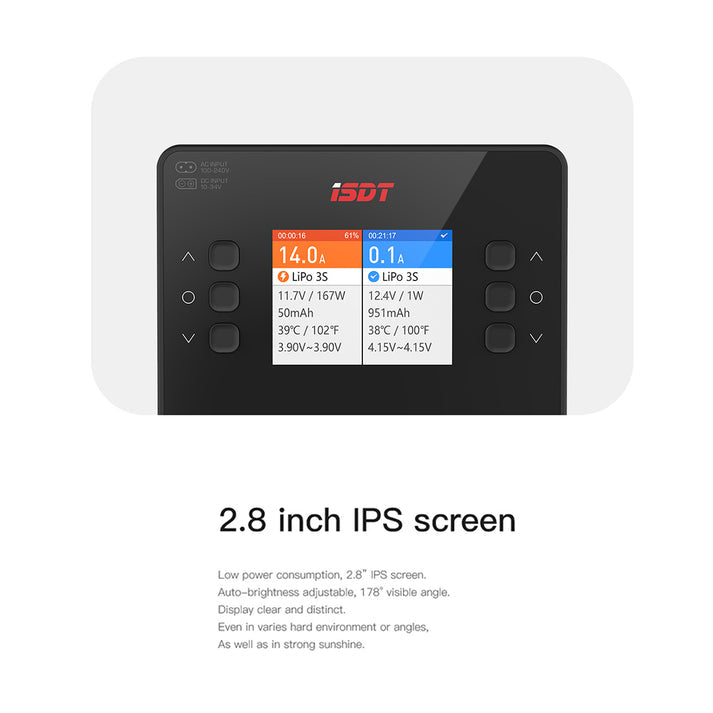

【ISDT K2 Air Smart Charger】: Supports Bluetooth connection, remote APP remote control, one-key setting of battery charging parameters, allowing you to control charging anytime, anywhere, full-color LCD display, will display the entire charging process of the battery, large screen display can be Displays charging voltage, current, charging time, mode, battery type, internal resistance and battery capacity for easy setting and manual operation mode.

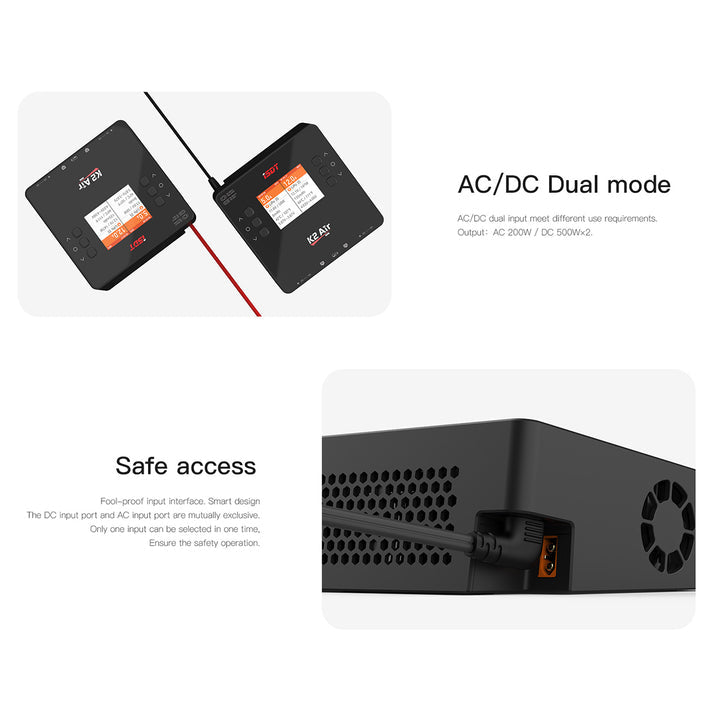

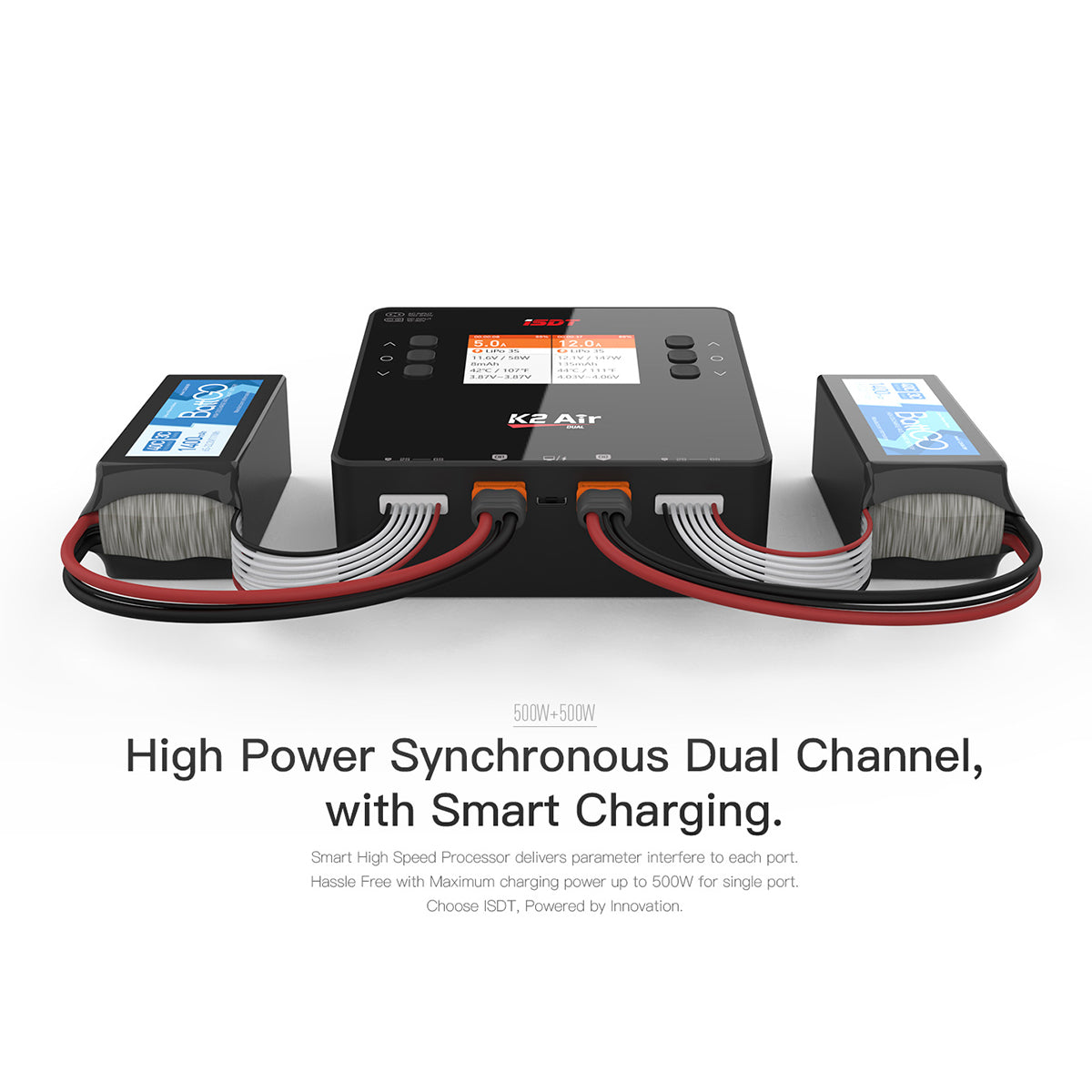

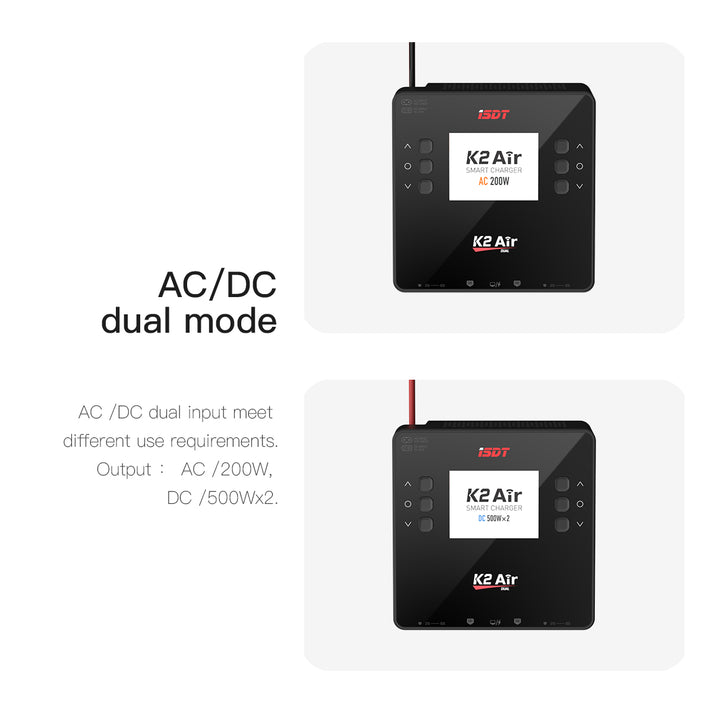

【AC/DC Dual Channel Lipo Charger】:Our K2 Air lipo charger has AC 200W/DC 500W x 2 dual input model with Independent dual channel,charging current:20A x 2,Max.Input current:40A.Advanced crafty cooling air duct for high efficiency heating dissipation.And K2 can acquire latest firmware upgrading,ensure the charger have optimalized performance and latest firmware all the time.
【K2 Air Charger Multi-Function】:It comes with Li-ion and LiPO balancing,fast charging,data storage,cycle charging,discharging function.It will automatically stop charging after full charged.

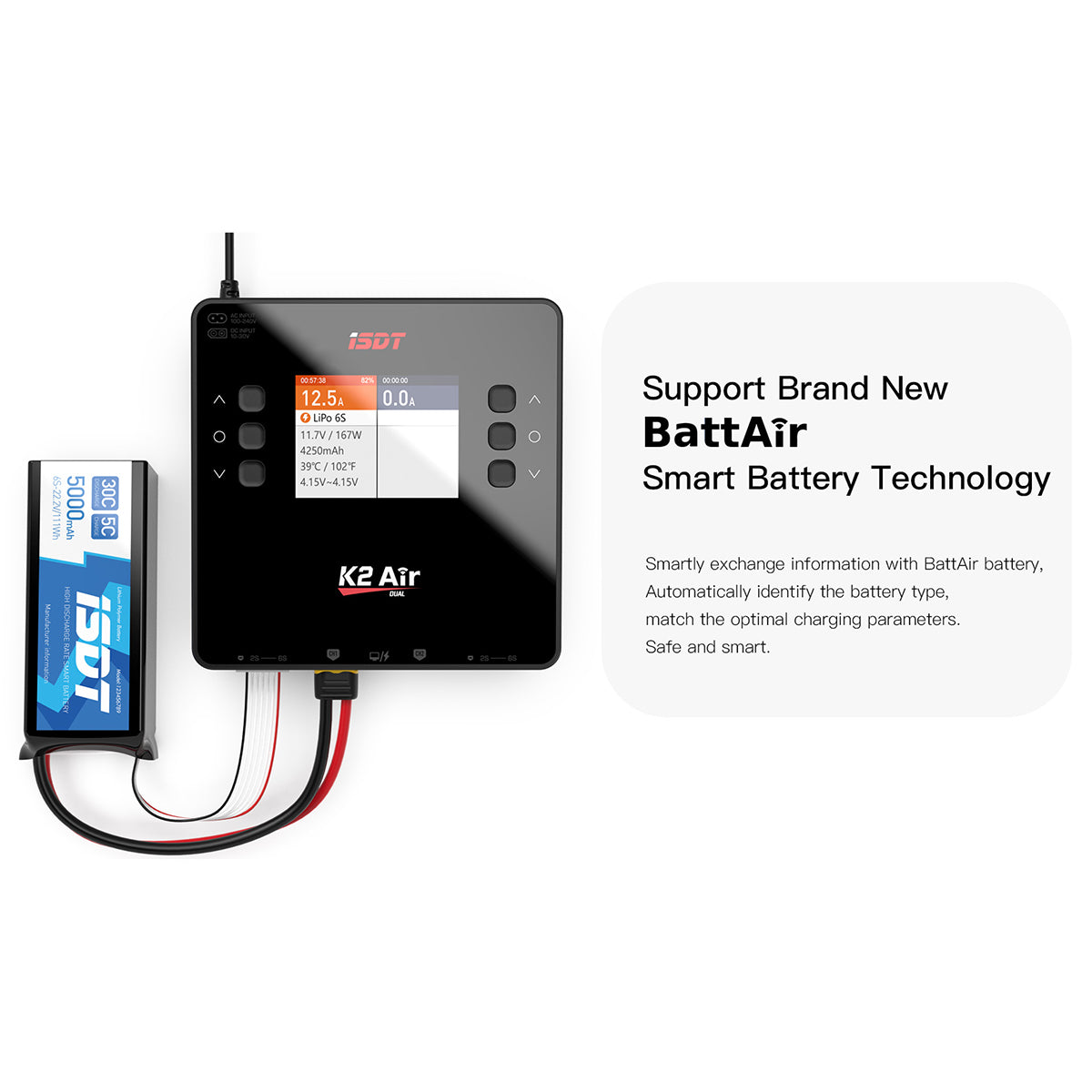

【ISDT Charger Various Battery Type Compatibility】:All-in-one control for LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S batteries,automatic battery type identification with intelligent charge algorithm matching to complete charging and discharging work.
【Multi-Application】: Our smart lipo charger product can widely used in RC plane/RC drone,portable power,portable devices,remote control car etc.Auto adjustmentfeature on charging parameters and auto safety shut-off for best charging performance.To help extend battery life with more reasonable.

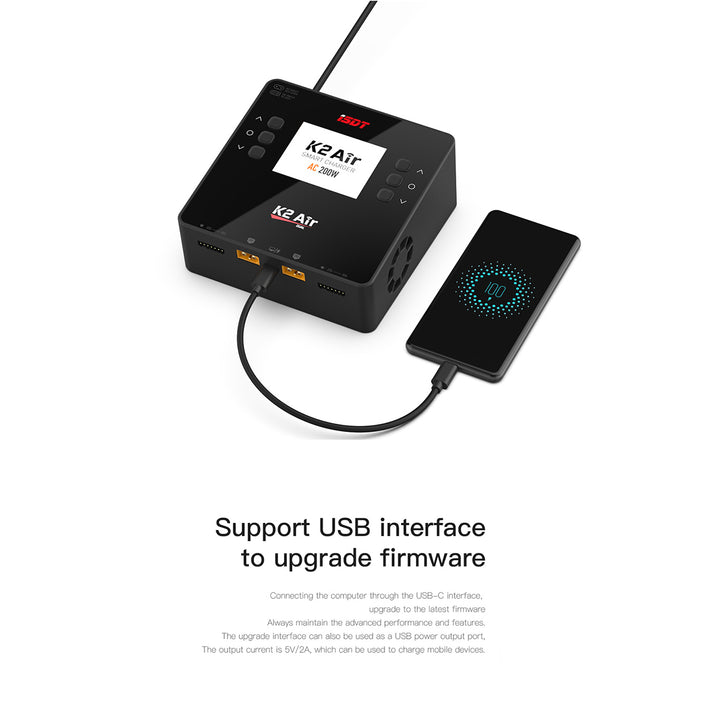

[Note]: If you encounter a firmware upgrade failure problem while using the ISD Link APP and the K2 Air cannot be used normally, please connect the K2 Air to the computer with a data cable, and the Battgo program will automatically upgrade the firmware. After the upgrade is complete, K2 Air can be used normally. If you have any questions about the product, please consult.

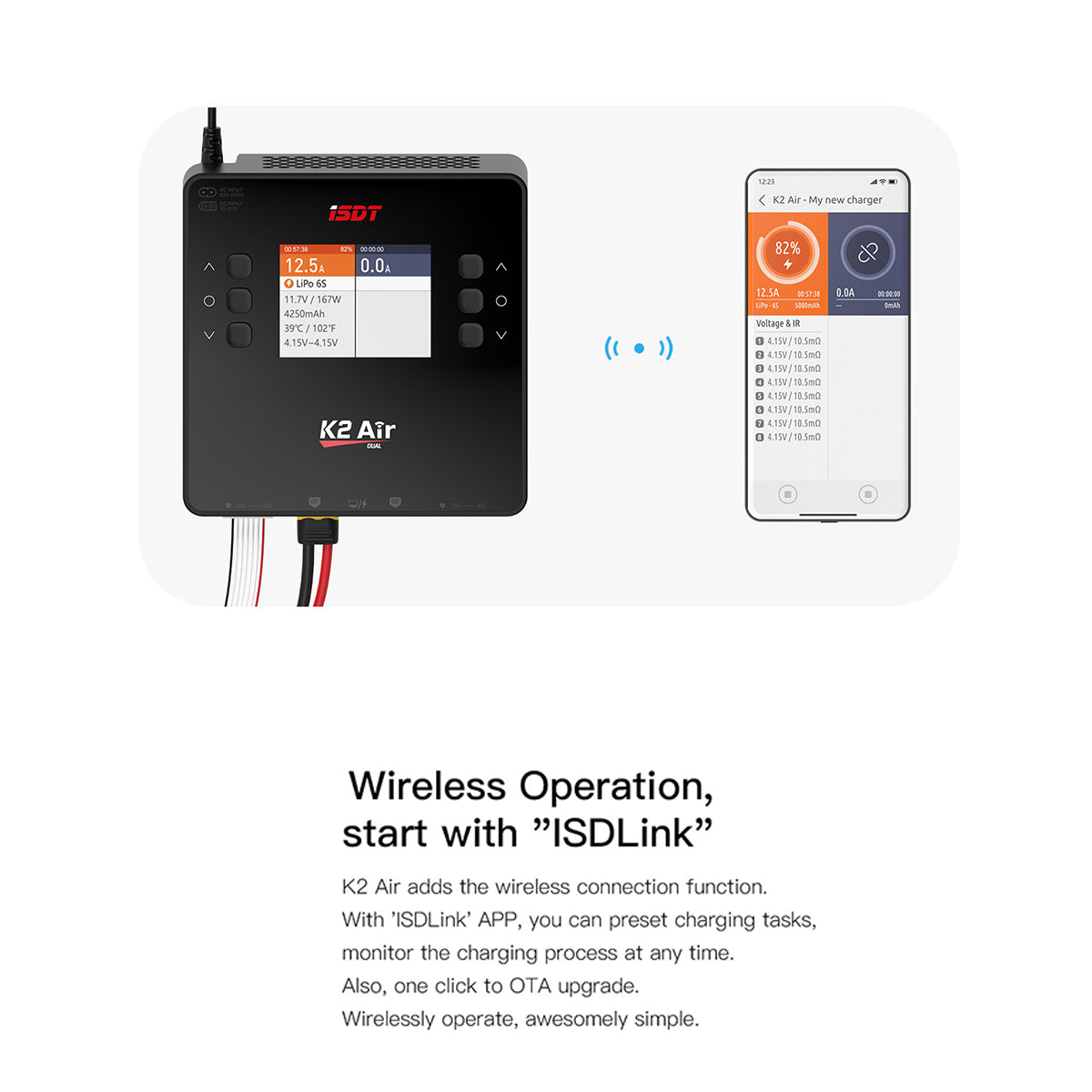

It supports the Bluetooth connection function of mobile phones, so you can control the charging status of lipo batteries anytime and anywhere.
Bluetooth connection app: ISD link.
Package includes:
1 x ISDT K2 air charger with NZ Plug.
No charging leads are included.
Specifications
Input voltage: | AC 100~240V / DC 10~30V |
Output voltage: | DC 1~30V |
Max. input current: | DC 35A |
Charging current: | 0.2~20A x2 |
Discharging current: | 0.2~1.5A x2 |
Balance current: | 1.5A/Cell Max |
Max. discharging power: | 15W x2 |
Max. charging power: | AC 200W / DC 500W x2 |
Abnormal voltage alarm: | Support |
Incorrect cell count setting alarm: | Support |
Supported battery types and cell count: | LiFe, Lilon, LiPo 1~6S, LiHv 1-6S, Pb 1-12S, NiMH/Cd 1-16S |
Parallel charging power and current: | 800W/35A |
Parallel discharge power and current: | 30W/3A |
Working temperature: | 0~40℃ |
Storage temperature: | -20℃~60℃ |
Dimension: | 135x135x64mm |
Weight: | About 700g |
