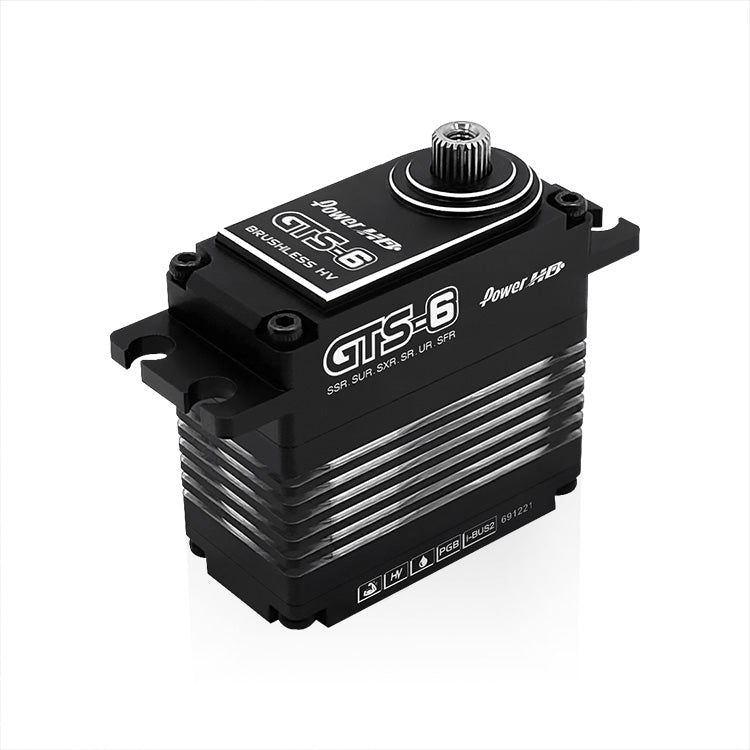

Power HD GTS-6 HV Brushless Servo

The new Power HD GTS-6 High Voltage Servo is specially designed for 1/8 scale model cars where high torque and durability are crucial. GTS-6 offers amazing torque output – up to 60.0 kg.

*Support FLYSKY i-BUS2 protocol: servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of:

• Noble NB4 Pro modes: NOR / SR / SFR
• Futaba modes: NOR / SR / UR
• SANWA modes: NOR / SHR /SSR / SUR / SXR

*Support the Power HD program box PG-CB63
*Four-Pole brushless motor

 Required servo horn: 25 teeth (not included)

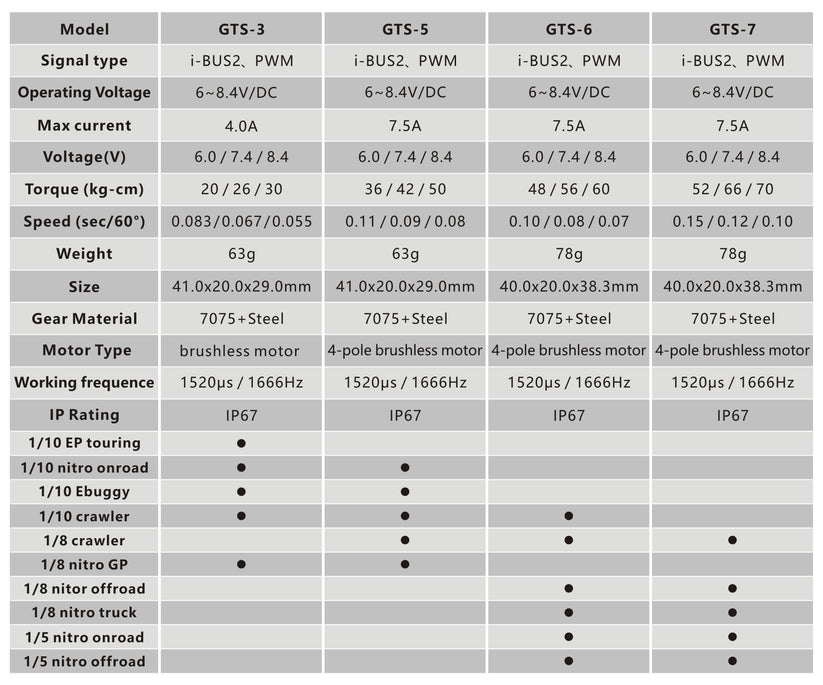

 Specification:

• Torque(6.0V): 48.0 kg-cm/ (666.6 oz/in)
• Torque(7.4V): 56.0 kg-cm/ (777.7 oz/in)
• Torque(8.4V): 60.0 kg-cm/ (833.2 oz/in)
• Speed: 0.10 sec (6.0V); 0.08 sec (7.4V); 0.07 sec (8.4V)
• Operating voltage: 6.0 - 8.4 DC Volts
• Weight: 78 g (2.75 oz)
• Bearing type: Ball Bearing x 2
• Motor type: Brushless Motor

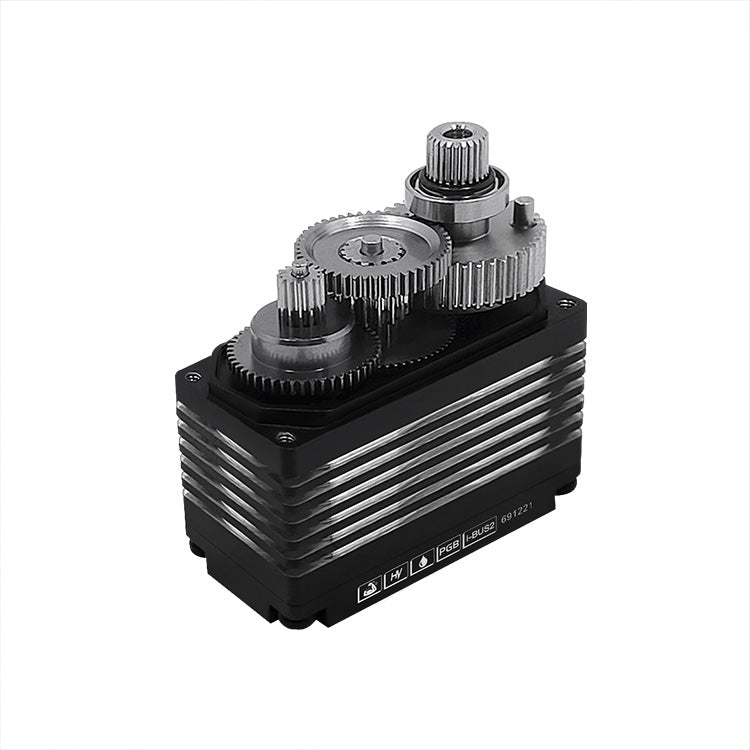

• Gear type:7075+Steel
• Operating temperature: from -20*C to +60*C
• Working frequency : 1520µs/1666hz
• Size:40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)
• Max current: 7.5A
