Sanwa

Sanwa PGS-XR II

Sanwa PGS-XR II

SKU: PGS-XR II
Regular price $289.00
Regular price Sale price $289.00
Sale Sold out
Tax included. Shipping calculated at checkout.

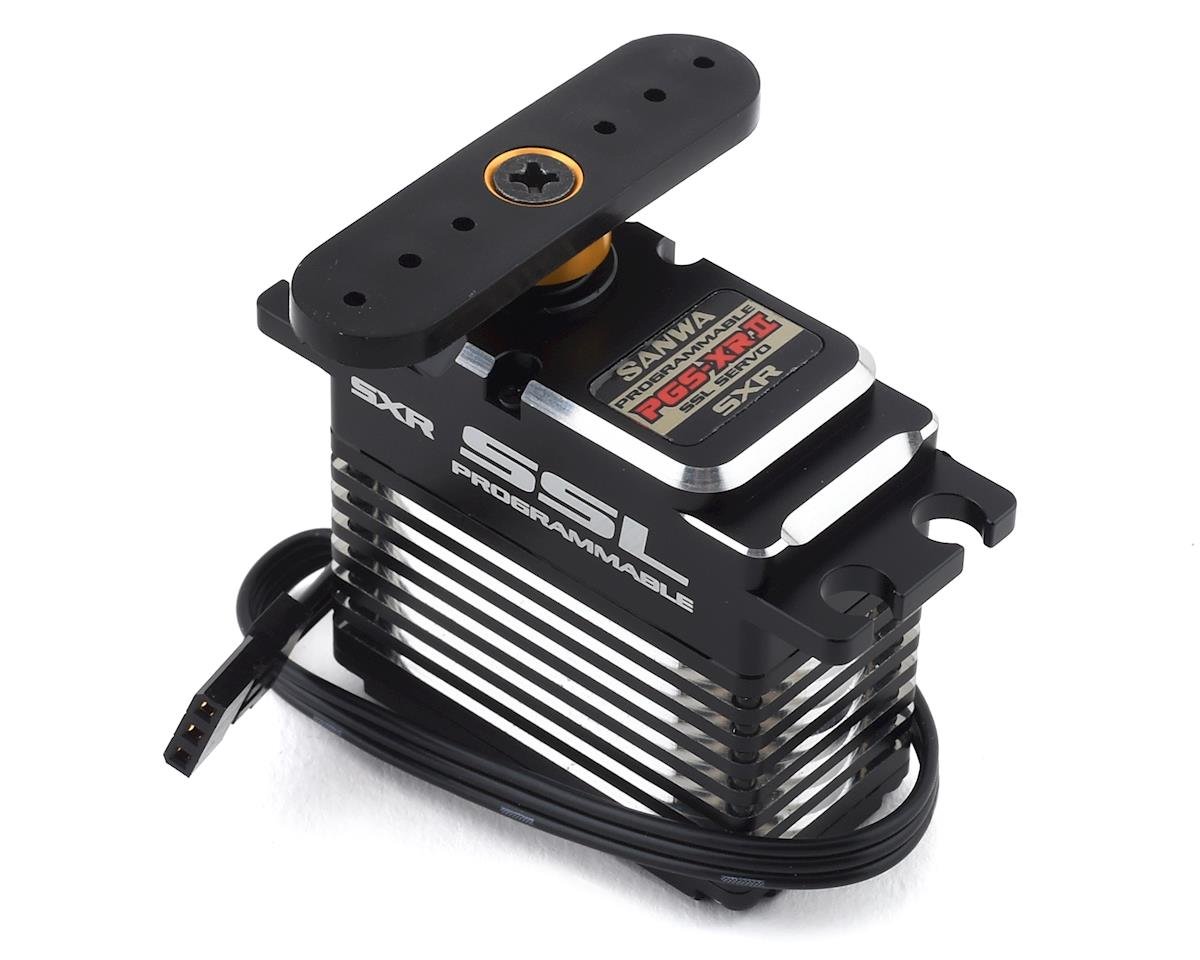

Sanwa PGS-XR II High Speed Brushless Servo.

Features:

  • FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
  • SSL-COMPATIBLE PROGRAMMABLE SERVO: Compatible with CODE 10 (M12S, EXZES ZZ, MT-44). Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
  • PGS SETTING GEAR-COMPATIBLE
  • SUPER RESPONSE (SSR) MODE-COMPATIBLE
  • HIGH RESPONSE (SHR) MODE-COMPATIBLE
  • Li-Po 2 CELL-COMPATIBLE
  • HIGH TORQUE TYPE
  • BRUSH LESS MOTOR
  • FULL ALUMINUM CASE
  • FULL METAL GEAR (Strengthening Gears)
  • ALUMINUM HEAT SINK
  • Black Harness
  • Programmable Servo to be compatible with SSL & Telemetry at Launch
  • Setting Adjustment by wireless from Radio
  • Setting Adjustment to connect Servo with Setting Gear
  • Regarding Temperature, Current, Voltage and Volume Position on Servo inside, Telemetry-transmission can be passed to Radio.
  • Initial Setting on Setting Gear is necessary.
Programmable Settings:
  • SSL-CH (SSL Channel Setting)
  • STRETC (Stretcher Adjustment)
  • BOOST (BOOST Adjustment)
  • D-Band (Dead Band Adjustment)
  • MV-MID (Middle Torque Adjustment)
  • MV-END (Later Torque Adjustment)
  • BREAK (Break Adjustment)
  • ◎MV-HOLD (Power Adjustment at whole area) ◎MV-FRQ (Feeling Adjustment at whole area)
  • ◎MAX-PW (MAX Duty Adjustment)
  • ※ Setting Gear is necessary for ◎setting.
  • PGS-Servo Explanation
Specifications:
  • Speed:
    • @7.4V: 0.09 sec/60 (7.4V)
    • @6.0V: 0.11 sec/60 (6.0V)
  • Torque:
    • @7.4V: 240.25 oz-in (17.3 kg-cm)
    • @6.0V: 194.42 (14.0 kg-cm)
  • Dimensions: 40.5x20.5x38.7mm
  • Weight: 72 g
