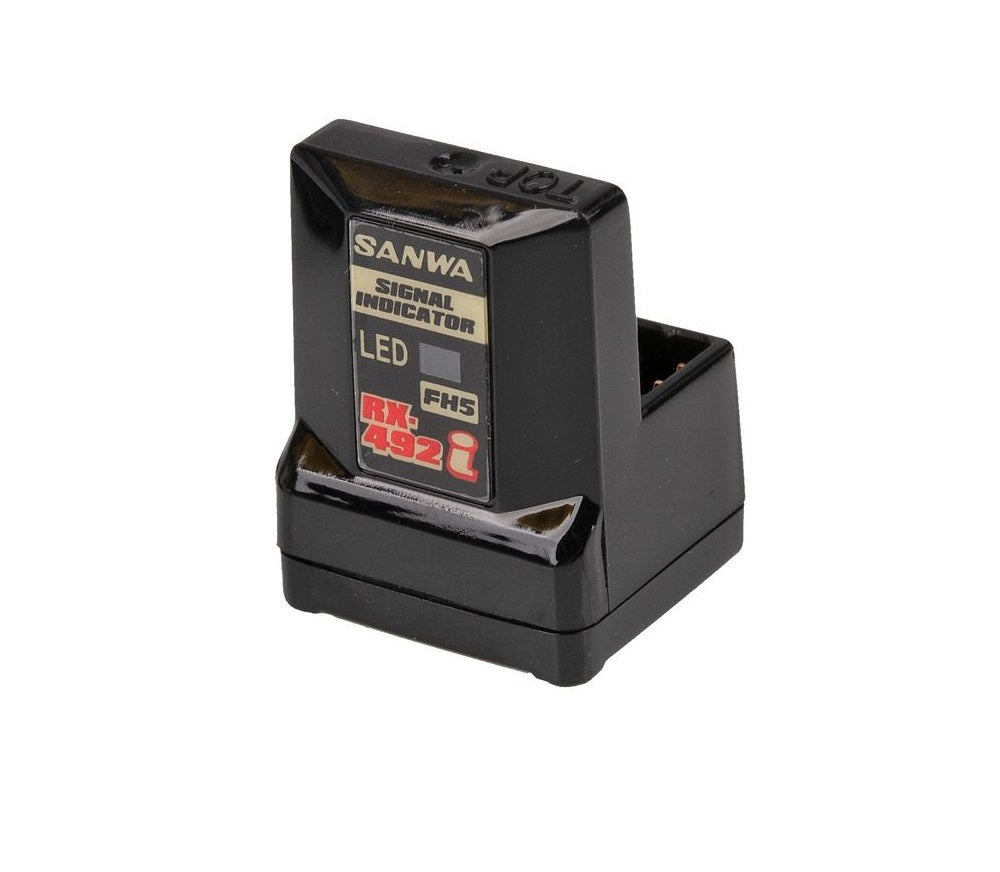

Sanwa RX-492i
Sanwa RX-492i
●Indicator Function compatible
Indicator function can be checked signal strength
connected transmitter.
The indicator function can be used for finding
problems as incorrect receiver placing and
finding the best receiver position for transmitter.
By SANWA technical development, indicator
function can be checked signal strength
without any effect with response.
Compact receiver
Waterproof
Plug in Bind
Built in Antenna
Only Capable with 1/10 and 1/12 Electric Car
●2.4 GHz FHSS5 Spread Spectrum System 4ch
●Compatible with Telemetry
※Cannot connect RPM sensor and Temperature sensor
To measure RPM and Temperature is only
combine with SUPER VORTEX series
●Compatible with SSL (SUPER VORTEX Series, etc...)
●Ultra Response Mode (SUR)
●Extreme Response Mode (SXR)
※SXR response mode is only compatible with
transmitter M17.
●Waterproof
●Dual ID system (able to bind with 2 transmitters)
●The smallest and most light receiver in the class
※RX-492i can be used with FH5 transmitters do not
have indicator function.
※RX-492i is not different with RX-492 except installing
indicator function.
※Indicator function can be used with transmitters are
compatible with indicator function.
Frequency |
2.4 GHz FHSS5 |
Channel |
4ch |
Nominal Input Voltage |
3.7~7.4 V |
Dimensions |
26.0 x 23.2 x 14.0 mm |
Weight |
6.8 g |
Compatible radio |
M17, MT-5, MT-R |
